Climate Controls

The heating, cooling, and ventilation for the vehicle can be controlled with these systems.

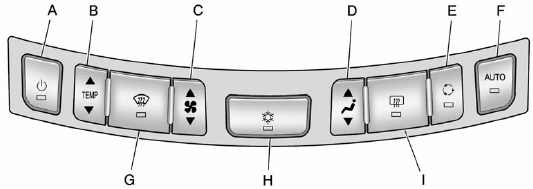

Automatic Climate Control System
Automatic Climate Control System

A. Power
B. Temperature Control
C. Fan Control
D. Air Delivery Mode Control
E. Recirculation
F. AUTO (Automatic Operation)
G. Defrost
H. Air Conditioning
I. Rear Window Defogger

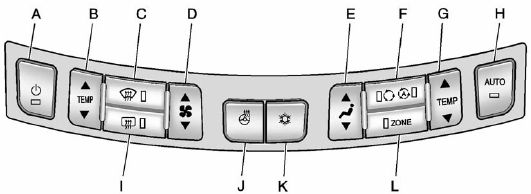

Dual Automatic Climate Control System for Non-eAssist Vehicles
Dual Automatic Climate Control System for Non-eAssist Vehicles

A. Power
B. Driver Temperature Control
C. Defrost
D. Fan Control
E. Air Delivery Mode Control
F. Recirculation/Automatic Recirculation
G. Passenger Temperature Control
H. AUTO (Automatic Operation)
I. Rear Window Defogger
J. Heated Steering Wheel
K. Air Conditioning
L. ZONE

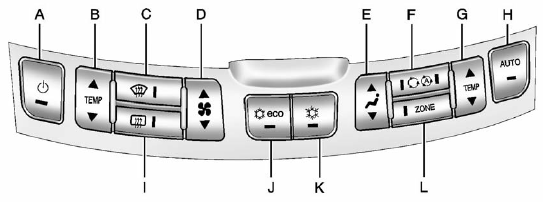

Dual Automatic Climate Control System for eAssist Vehicles
Dual Automatic Climate Control System for eAssist Vehicles

A. Power
B. Driver Temperature Control
C. Defrost
D. Fan Control
E. Air Delivery Mode Control
F. Recirculation/Automatic Recirculation
G. Passenger Temperature Control
H. AUTO (Automatic Operation)
I. Rear Window Defogger
J. Eco Air Conditioning
K. Comfort Air Conditioning
L. ZONE

See Automatic Climate Control System (If Equipped) or Dual Automatic Climate Control System (If Equipped).
