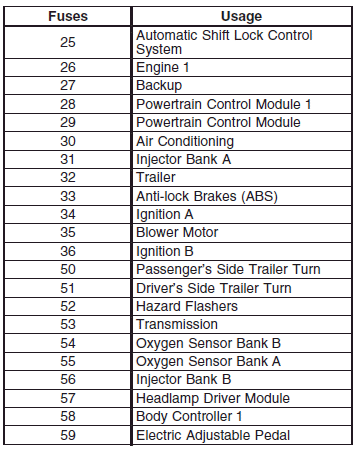

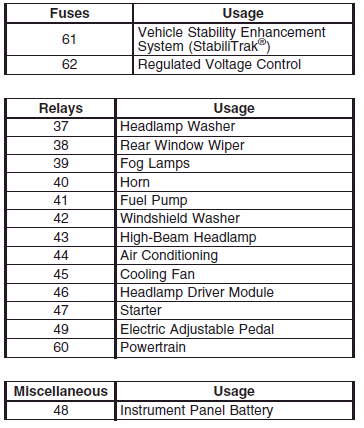

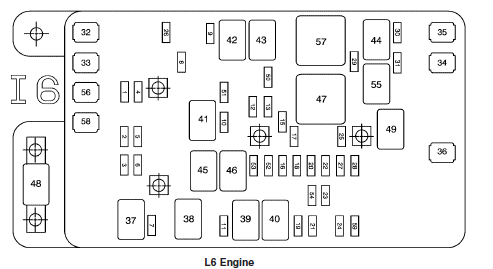

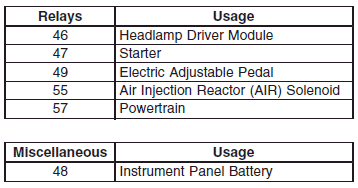

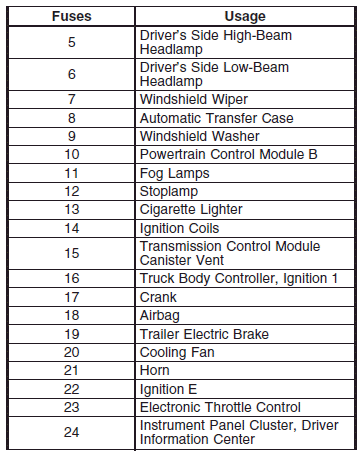

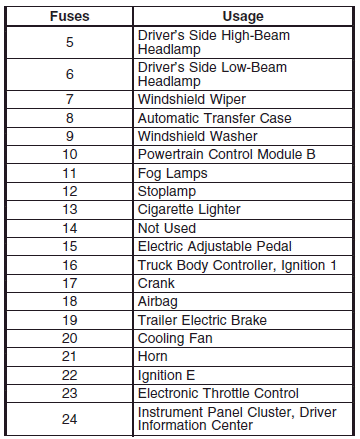

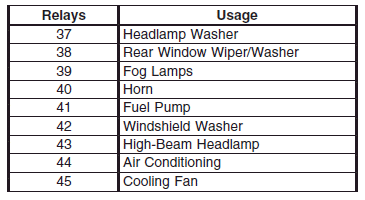

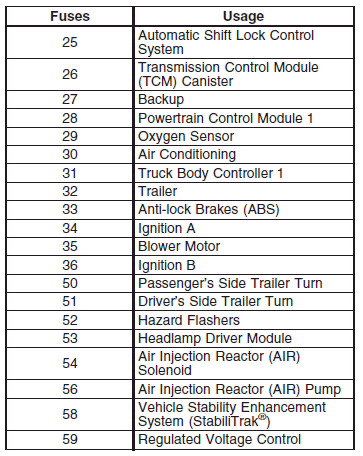

Engine Compartment Fuse Block

The fuse block is located under the hood in the

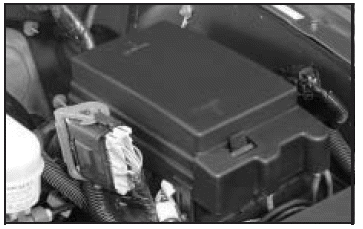

The fuse block is located under the hood in the engine compartment on the driver’s side of the vehicle.

Remove the primary cover by pressing the two locking tabs. Remove the secondary cover by snapping off while lifting. To reinstall the fuse panel cover, reverse the sequence.

Rear Underseat Fuse Block
