Headlamps, Front Turn Signal and Parking Lamps

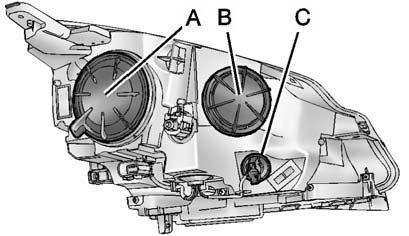

Driver Side Shown, Passenger Side Similar

Driver Side Shown, Passenger Side Similar

A. Low-Beam Headlamp
B. High-Beam Headlamp
C. Parking/Turn Signal Lamp
