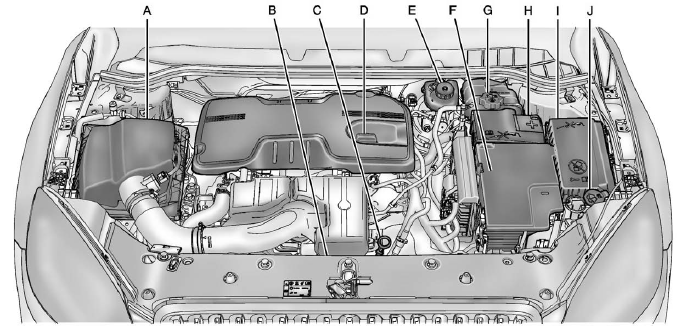

Engine Compartment Overview

A. Engine Air Cleaner/Filter .

A. Engine Air Cleaner/Filter .

B. Electric Engine Cooling Fan (Out of View). See Cooling System .

C. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil .

D. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil .

E. Brake Fluid Reservoir. See “Brake Fluid” under Brakes .

F. Battery  (Under Cover).

G. Engine Coolant Surge Tank and Pressure Cap. See Engine Coolant .

H. Remote Positive (+) Terminal. See Jump Starting .

I. Engine Compartment Fuse Block .

J. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Washer Fluid .
