Instrument Panel Fuse Block

To access the fuses, open the storage compartment. Press in on the sides of the compartment to release it from the instrument panel. The instrument panel fuse block is located in the instrument panel, on the driver side of the vehicle.

To access the fuses, open the storage compartment. Press in on the sides of the compartment to release it from the instrument panel.

Pull the door toward you to release it from the hinge.

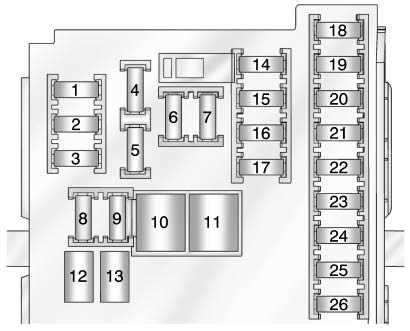

Instrument Panel Fuse Block
