Engine Compartment Overview

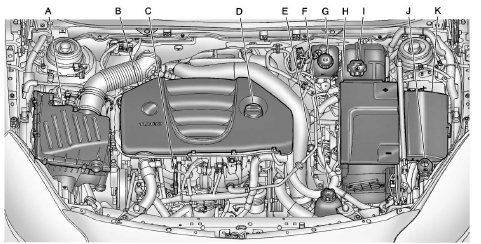

A. Engine Air Cleaner/Filter . 2.0 L L4 Engine

A. Engine Air Cleaner/Filter .

B. Engine Cover.

C. Engine Oil Dipstick. See Engine Oil .

D. Engine Oil Fill Cap. See Engine Oil .

E. Transmission Fluid Cap and Dipstick. See Automatic Transmission Fluid .

F. Power Steering Fluid Reservoir and Cap. See Power Steering Fluid .

G. Brake Master Cylinder and Hydraulic Clutch Reservoir (if equipped with manual transmission). See Brakes  or Hydraulic Clutch .

H. Battery Cover. See Battery .

I. Engine Coolant Reservoir and Pressure Cap. See Engine Coolant .

J. Windshield Washer Fluid Reservoir. See Washer Fluid .

K. Engine Compartment Fuse Block

Vehicle Care

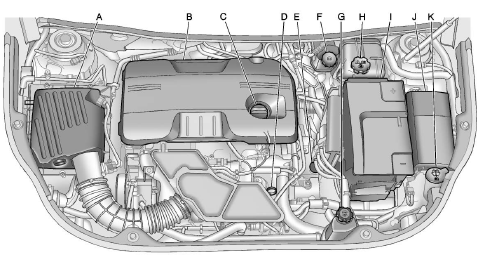

A. Engine Air Cleaner/Filter . 2.4 L L4 Engine

A. Engine Air Cleaner/Filter .

B. Engine Cover.

C. Engine Oil Fill Cap. See Engine Oil .

D. Engine Oil Dipstick. See Engine Oil .

E. Transmission Fluid Cap and Dipstick. See Automatic Transmission Fluid .

F. Brake Master Cylinder Reservoir. See Brakes .

G. Power Steering Fluid Reservoir and Cap. See Power Steering Fluid .

H. Engine Coolant Reservoir and Pressure Cap. See Engine Coolant .

I. Battery Cover. See Battery .

J. Engine Compartment Fuse Block .

K. Windshield Washer Fluid Reservoir. See Washer Fluid .
