Seat Adjustment

Seat Position

WARNING

You can lose control of the vehicle if you try to adjust a manual driver seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to. WARNING
You can lose control of the vehicle if you try to adjust a manual driver seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.

Adjust the driver seat only when the vehicle is not moving.

To adjust the seat position:

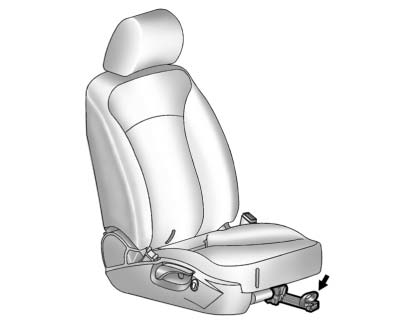

1. Pull the handle under the front of the seat cushion.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in place.

Height Adjustment

Press and hold the top or bottom of the switch to raise or lower the seat.

Press and hold the top or bottom of the switch to raise or lower the seat.

Release the switch when the desired height is reached.
