Engine Compartment Fuse Block

To remove the fuse block cover,

To remove the fuse block cover, squeeze the three retaining clips on the cover and lift it straight up.

Notice:
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

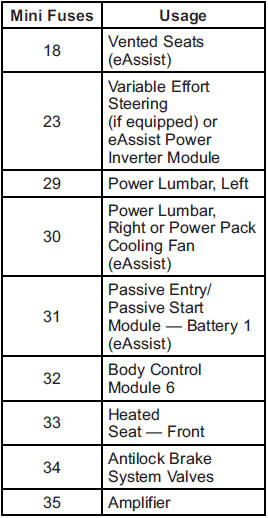

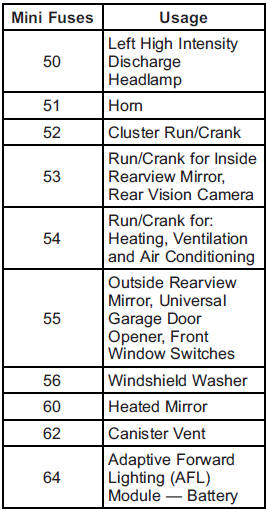

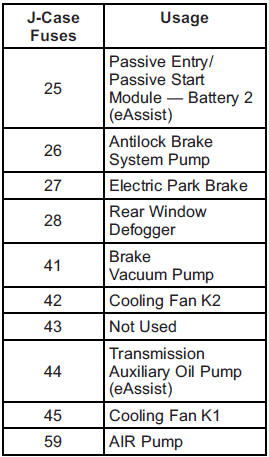

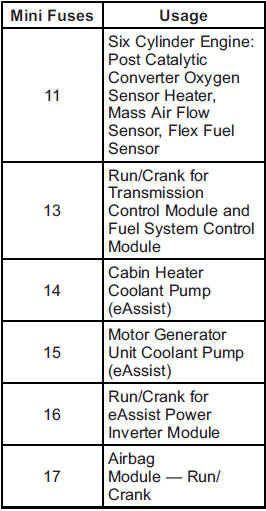

Engine Compartment Fuse Block
Engine Compartment Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.
