Engine Compartment Overview

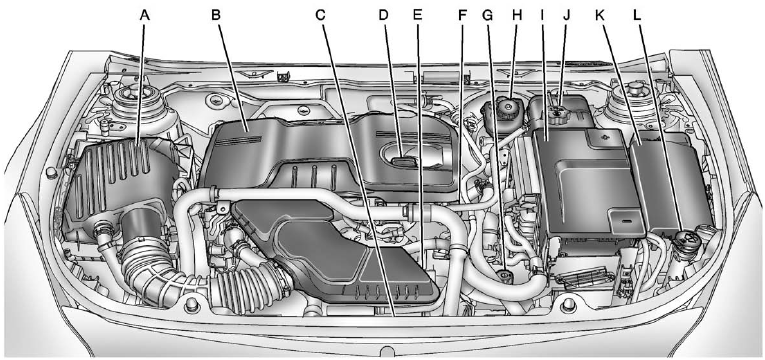

2.4L L4 Engine
2.4L L4 Engine

A. Engine Air Cleaner/Filter.

B. Engine Cover.

C. Engine Cooling Fans (Out of View). See Cooling System.

D. Engine Oil Fill Cap. See Engine Oil.

E. Engine Oil Dipstick (Out of View). See Engine Oil.

F. High Voltage Cable (Orange Color).

G. Transmission Fluid Cap. See Automatic Transmission Fluid.

H. Brake Master Cylinder Reservoir. See Brakes.

I. Battery (Under Cover). See Battery.

J. Coolant Surge Tank and Pressure Cap. See Engine Coolant.

K. Engine Compartment Fuse Block.

L. Windshield Washer Fluid Reservoir. See Washer Fluid.

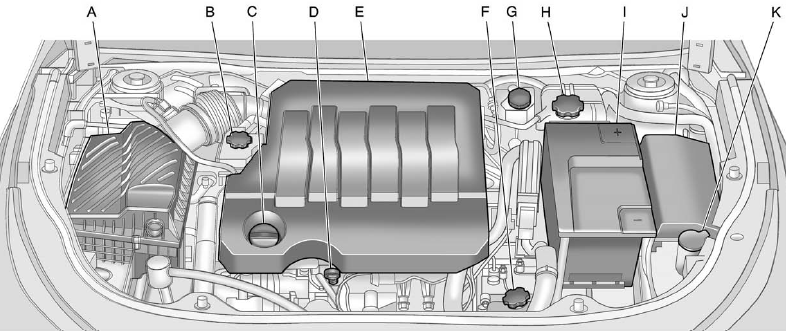

3.6L V6 Engine
3.6L V6 Engine

A. Engine Air Cleaner/Filter.

B. Power Steering Reservoir and Cap. See Power Steering Fluid (2.4L L4 Engine) or Power Steering Fluid (3.6L V6 Engine).

C. Engine Oil Fill Cap. See Engine Oil.

D. Engine Oil Dipstick. See Engine Oil.

E. Engine Cover.

F. Transmission Fluid Cap and Dipstick. See Automatic Transmission Fluid.

G. Brake Master Cylinder Reservoir. See Brakes.

H. Coolant Surge Tank and Pressure Cap. See Engine Coolant.

I. Battery Cover. See Battery.

J. Engine Compartment Fuse Block.

K. Windshield Washer Fluid Reservoir. See Washer Fluid.
