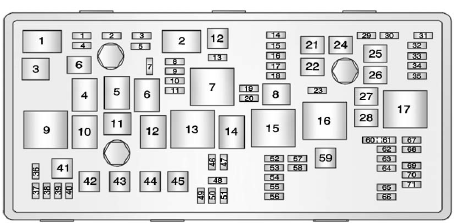

Engine Compartment Fuse Block

To remove the fuse block cover, press the three retaining clips on the cover and lift it straight up.

To remove the fuse block cover, press the three retaining clips on the cover and lift it straight up.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

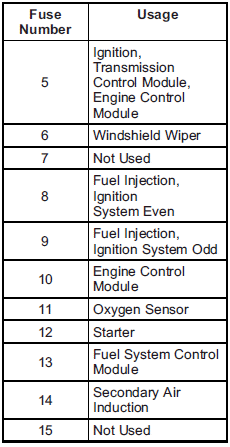

Engine Compartment Fuse Block

Instrument Panel Fuse Block
