Instrument Panel Fuse Block

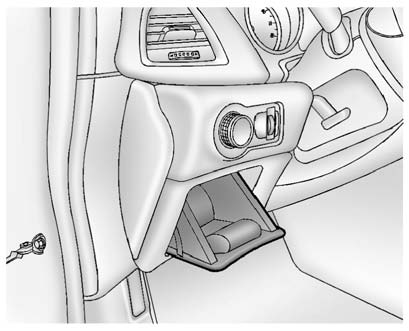

The instrument panel fuse block is on the driver side of the instrument panel.

The instrument panel fuse block is on the driver side of the instrument panel. To access the fuses:

1. Access the fuse block by opening the storage compartment.

2. Pull straight down and out to remove the storage compartment.

3. Remove the cover.

To reinstall the cover, line up the retainers and push into place.

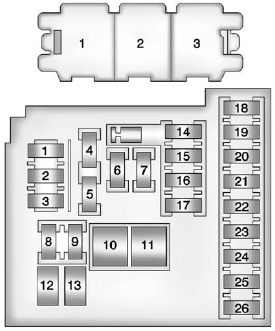

Instrument Panel Fuse Block

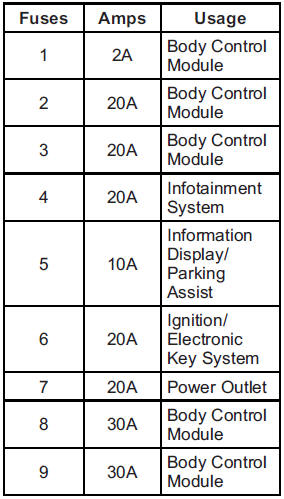

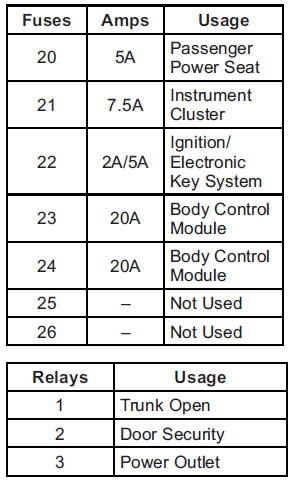

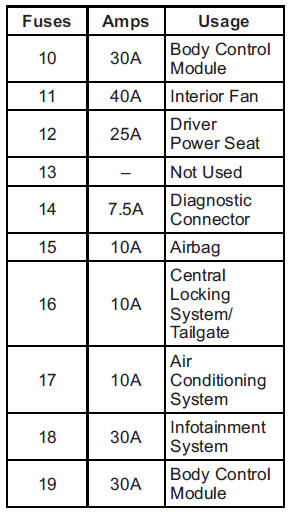

Instrument Panel Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.
