Stoplamp,Taillamp, and Turn Signal Lamp

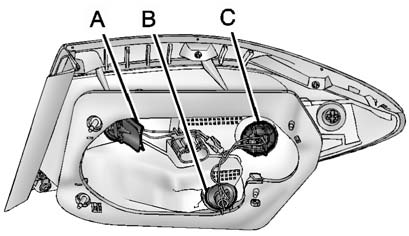

Driver Side Shown, Passenger Side Similar

Driver Side Shown, Passenger Side Similar

A. Taillamp

B. Turn Signal Lamp

C. Stoplamp/Taillamp

To replace any one of these bulbs:

1. Open the trunk.

2. Remove the push pins securing the trunk trim.

3. Pull the trunk lining away from the taillamp assembly.

4. Turn the bulb socket counterclockwise to remove it from the rear taillamp assembly.

5. Pull the bulb straight out to remove it from the bulb socket.

6. Push the new bulb into the socket.

7. Push the bulb socket straight in and turn it clockwise to lock it into place.

8. Reinstall the trunk trim.

9. Reinstall the push pins.
