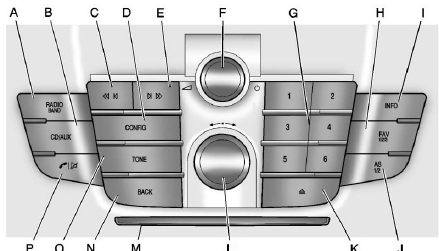

Overview

A. RADIO/BAND . Changes the band while listening to the radio.

A. RADIO/BAND . Changes the band while listening to the radio.

► Selects the radio when listening to a different audio source.

B. CD/AUX . Selects the CD player or an external audio source.

C. ► CD: Select the previous track or rewinds within a track. . Radio: Seeks the previous station.

► CD: Select the previous track or rewinds within a track.

D. CONFIG . Opens the Settings menu.

E. ► CD: Selects the next track or fast forwards within a track. . Radio: Seeks the next station.

► CD: Selects the next track or fast forwards within a track.

F. G. Buttons 1 to 6 . Radio: Saves and selects favorite stations. . Turns the system on or off and adjusts the volume.

G. Buttons 1 to 6 . Radio: Saves and selects favorite stations.

H. FAV 1/2/3 . Radio: Opens the favorites list.

I. INFO . Radio: Shows available information about the current station.

► CD: Shows available information about the current track.

J. AS 1/2 . Radio: Opens the autostore list.

K. L. . Removes a disc from the CD slot.

L. ► Radio: Manually selects radio stations. . Opens menus, highlights menu items, or sets numeric values while in a menu.

► Radio: Manually selects radio stations.

► CD: Selects tracks.

M. CD Slot

N. BACK . Menu: Moves one level back.

► Character Input: Deletes the last character.

O. TONE . Opens the Tone Settings menu.

P. ► Mutes the audio system. . Opens the Phone main menu.

► Mutes the audio system.
