License Plate Lamp

To replace one of these bulbs, do the following:

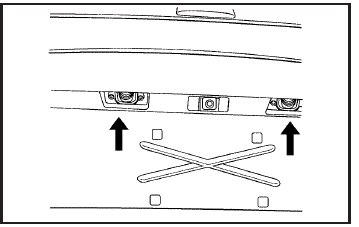

1. Remove the two screws holding the license plate lamp lens.

2. Pull the lens away from the lamp assembly.

2. Pull the lens away from the lamp assembly.
3. Pull the old bulb from the bulb socket, keeping the bulb straight as you pull it out.
4. Install the new bulb.
5. Replace the lamp assembly lens and tighten the screws.
