Rear Compartment Fuse Block

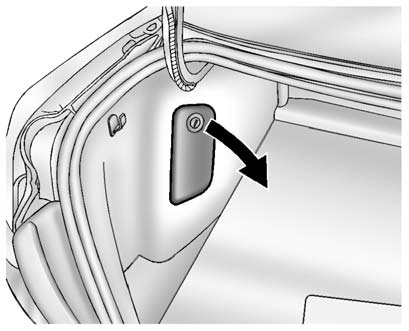

The rear compartment fuse block, if equipped, is located on the left side of the trunk behind a cover.

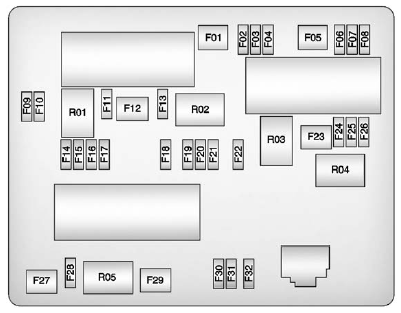

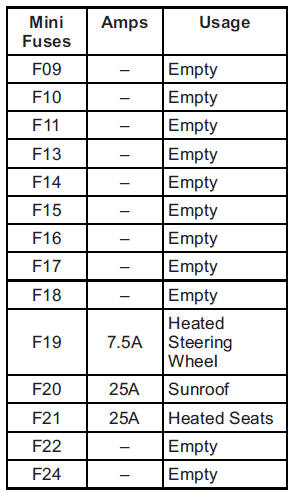

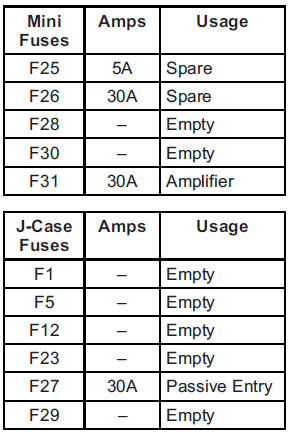

The vehicle may not be equipped with all of the fuses, relays, and features shown.
