Engine Compartment Fuse Block

To open the fuse block cover, press the clips at the front and back and rotate

To open the fuse block cover, press the clips at the front and back and rotate the cover up to the side.

it. Always keep the covers on any electrical component.Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

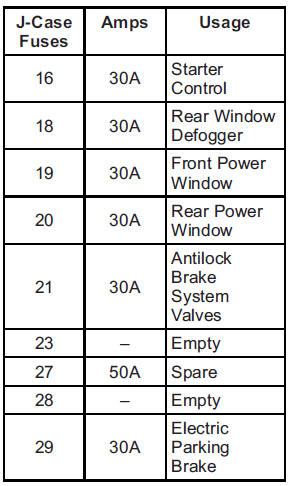

Engine Compartment Fuse Block

Engine Compartment Fuse Block

A fuse puller is located in the engine compartment fuse block.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Instrument Panel Fuse Block
