Cooling System
The cooling system allows the engine to maintain the correct working temperature.

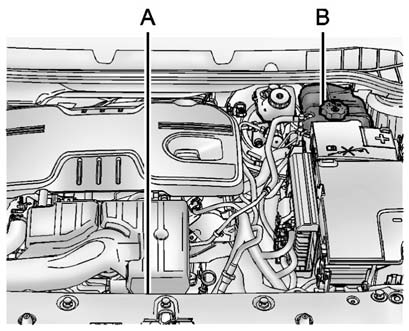

A. Engine Cooling Fan (Out of View)
B. Engine Coolant Surge Tank and Pressure Cap
WARNING
An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan.
WARNING
Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned.
Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine fire, and you could be burned. Get any leak fixed before you drive the vehicle.
Notice: Using coolant other than DEX-COOL® can cause premature engine, heater
core, or radiator corrosion. In addition, the engine coolant could require changing
sooner, at 50 000 km (30,000 mi) or 24 months, whichever occurs first. Any repairs
would not be covered by the vehicle warranty. Always use DEX-COOL (silicate-free)
coolant in the vehicle.
