Instrument Panel Fuse Block

The instrument panel fuse block is

The instrument panel fuse block is located in the instrument panel, on the driver side of the vehicle. To access the fuses, open the fuse panel door by pulling down at the top.

Press in on the sides of the door to release it from the instrument panel.

Pull the door toward you to release

Pull the door toward you to release it from the hinge.

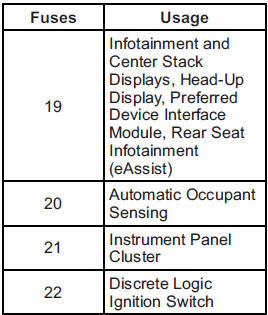

Instrument Panel Fuse Block
Instrument Panel Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Rear Compartment Fuse Block
